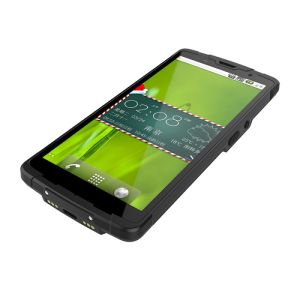

Warehouse Managementandroid Handheld Android 8.1 Barcode Scanner 1D 2D QR Code
| SD55(8464N) Basic Parameters | |
| OS | Android 8.1 |
| CPU | Octa-Core 2.0GHz |
| RAM | 4GB |
| ROM | 64GB |
| Expansion | Micro SD (TF) card slot up to 128GB |
| Keypad | 5 side buttons,2 volume buttons,2 function buttons(1 left and right),1 power button |
| Audio | 1609 Dual speakers,waterproof design,Dual silicon mic noise reduction |
| Notification | Sound/vibration/LED prompt |
| Dimentions | 150mm*72.5mm*15mm |
| Weight( with battery) | 200g |
| Camera | |
| Camera | Rear camera 13MP AF(16MP PDAF option)；Front Camera 5MP FF |
| Focus mode | Autofocus ; Front focus |
| Flash | Support single color LED flash |
| Display | |
| Display | 5.5inch Full Screen |
| Resolution | 720*1440 |
| Touch Panel | 5-point capacitive touch screen |
| Power | |
| Battery | large-capacity built-in Li-ion battery 4500mAh |
| Charging | PE fast charging, fully charged time< 4 hours Wireless charging QI standard, 5w or 10w |
| Interface | support USB-TypeC, support fast charge, support OTG |
| Communication | |
| GPS | BT4.0 BLE |
| WLAN | WiFi 802.11 a/b/g/n 2.4G 5G |
| WWAN | FDD-LTE B1/B3/B5/B7 or B1/B4/B8/B13 TDD-LTE B38/B39//B40/B41 TDSCDMA B34/B39 WCDMA B1/B2/B5/B8 GSM B2/B3/B5/B8 CDMA1x/CDMA2000 BC0 |
| GPS | GPS,GLONASS,BeiDou,AGPS,option UBLOX8030 |
| Performance | |
| Operation Temperature | -20℃ ~60℃ |
| Storage Temperature | -30℃ ~+80℃ |
| Humidity | 5%~95%(No condensation) |
| Sealing | IP65 |
| Sealing | In the operating range, 6 sides can withstand the impact of 1.5 meters drop to the concrete floor |
| Tumble Test | 6 contact surfaces rolling for 1000 times/ 0.5M |
| ESD | ±15kV Air Discharge, ±8kV Contact Discharge |
| Certificate | CCC,CTA,CE,FCC |
| Extensibility | |
| NFC RFID Reader | NFC (PN548) Support NFC Reader/writer, ISO14443-A/B/F, ISO18092, FeliCa, MIFARE, ISO15693 |
| Barcode Scanner | Honeywell N6603 1D/2D |
About SPEEDATA :
SPEEDATA was founded in 2008 with the wide development of IOT,our company's own brand SPEEDATA, product lines rich in logistics, warehousing management, mobile biometrics fingerprint collection, animal traceability, asset management, mobile bill printing, etc.These are due to the company to put research and development in the first place, we have a 50 engineers technical team, to provide customers with OEM/ODM services.
We SPEEDATA Handheld Terminal have been used in some world significant projects like the 2014 Brazil World Cup mobile tickets checking , Africa voting Fingerprint collection , and Ukrarine railway ticket checking devices ,etc;
in 2018 , we designed several kind of products special for warehouse management and logistics ,and Medical care ,Retail;
SD35 : 3.5inch screen with keypad ,Android 6.0 os barcode scanner ,design for warehouse management ;
SD55LG : 5.5inch Full screen , Android 8.1 os barcode scanner, design for logistics ;
SD55MD : 5.5inch Full screen ,Android 8.1 os barcode scanner,design for medical care ;
beside barcode scanner , there are also new products related RFID UHF Reader.
SD55UHF : using China brand UHF Module ,reading distance 1-3meters ,with cost-effective price ;
SD60RT : design for warehouse ,retail ,with pistol ,using impinj R2000 UHF RFID reader module , reading distance up to 5-7 meters ,Android 8.1 os;
